4000bph Water bottling equipment for Glass Bottle , water bottling machines

Brand Name : Jiayuan

Model Number : CGF16-12-6

Certification : CE,SGS

Place of Origin : China Mainland

MOQ : 1 set

Price : USD18000 -85000 set

Payment Terms : T/T

Supply Ability : 10 sets per month

Delivery Time : 30 work days

Packaging Details : Wooden Case

Application : Liquid|Soda|Beverage|Juice

Bottle Type : galss bottle

Capacity : 4000bph

Driven Type : electric

Product name : Water Filling Machine

packing : wooden

power : 4.23kw

Contact Now

4000bph Water bottling equipment for Glass Bottle , water bottling machines

Specification:

1. Product: 4000bph Zhangjiagang water machine supplier

2. Main Material: SS304

3. Production capacity: 4000bph(500ml)

4. Usage: Fill pure/mineral/distilled water and so on

5. Dimension: 2100*1500*2200mm

6. Warranty: 1year free

Introduction:

This CGF Wash-filling-capping 3-in-1 unit : Beverage Machinery is used to produce polyester bottled mineral water, purified water, alcoholic beverage machinery and other non-gas beverage machinery. Beverage Machinery can finish all the process such as washing bottle, filling and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.

Characteristics:


1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.

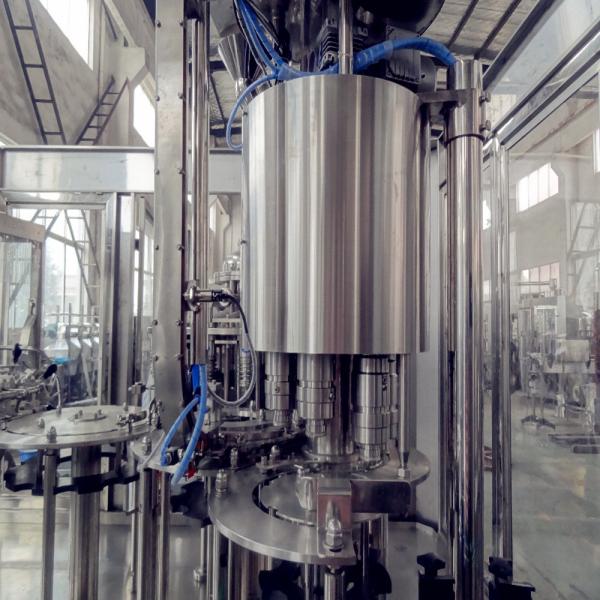

4000bph Water bottling equipment for Glass Bottle , water bottling machines4000bph Water bottling equipment for Glass Bottle , water bottling machines4000bph Water bottling equipment for Glass Bottle , water bottling machines4000bph Water bottling equipment for Glass Bottle , water bottling machines

Specifications:

4000bph Zhangjiagang water machine supplier

1.Electrical elements

PLC

MITSUBI

Frequency converter

MITSUBI

Touch screen

WEINVIEW

Contactor

DELIXI

Cylinder

Airtac

Pump

Nan fang pump

Switch

Omron

Electromotor

Wannan Motor

2.Suitable bottle:

Round or square plastic bottle

Bottle size

250-2000ml

Bottle body:Φ90mm,

Bottle height H:150-320mm

Bottle neck diameter:

Φ20-Φ35mm

Cap:

Plastic screw cap

DiameterΦ25-Φ35mm

Cap height:15-25mm

3.Main parameters:

Production capacity:

500ml,4000BPH

Position:

Washer16,filler12,capper6

Filling temperature:

Normal filling,gravity filling

Air pressure:

0.6mpa(self-prepare)

4.Motor powder:

Main motor: 1.5kw

Capper loading: 0.09kw

Washing pump: 0.37kw

Filling pump: 4.23kw

Convoying motor:0.55kw

Air conveyor motor:0.75kw
